Auto-resizing a DITA table after inserting content
Hi, We did implement "ro.sync.ecss.extensions.api.AuthorReferenceResolver". We did not do any custom css rule matching, nor did we use the StyleFilter API for this. What would be the best option to implement this behavior, css or the StyleFilter? The behavior would not differ much from the behavior for conrefs. Kind regards, Pascal -----Original Message----- From: oXygen-sdk <oxygen-sdk-bounces@oxygenxml.com> On Behalf Of oxygen-sdk-request@oxygenxml.com Sent: Tuesday, June 18, 2019 7:00 PM To: oxygen-sdk@oxygenxml.com Subject: oXygen-sdk Digest, Vol 61, Issue 2 Send oXygen-sdk mailing list submissions to oxygen-sdk@oxygenxml.com To subscribe or unsubscribe via the World Wide Web, visit https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk or, via email, send a message with subject or body 'help' to oxygen-sdk-request@oxygenxml.com You can reach the person managing the list at oxygen-sdk-owner@oxygenxml.com When replying, please edit your Subject line so it is more specific than "Re: Contents of oXygen-sdk digest..." Today's Topics: 1. Re: Auto-resizing a DITA table after inserting content (Oxygen XML Editor Support (Radu Coravu)) ---------------------------------------------------------------------- Message: 1 Date: Tue, 18 Jun 2019 12:49:12 +0300 From: "Oxygen XML Editor Support (Radu Coravu)" <support@oxygenxml.com> To: oxygen-sdk@oxygenxml.com Subject: Re: [oXygen-sdk] Auto-resizing a DITA table after inserting content Message-ID: <b73d25a6-5dae-2ae3-f259-65dedc2eeeff@oxygenxml.com> Content-Type: text/plain; charset=utf-8; format=flowed Hi Pascal, You can refresh the entire edited content in the Author visual editing mode using the F5 keyboard shortcut but probably the table will look the same no matter how many times you refresh it. So you added your own "ro.sync.ecss.extensions.api.AuthorReferenceResolver" implementation, right? Also did you add some kind of custom CSS rule matching such reused elements? Or use our StylesFilter API? Somehow I need to reproduce this on my side in order to add logging on my side. So if possible please send to "support@oxygenxml.com" a sample file + the custom framework extension containing your Java extensions. Regards, Radu Radu Coravu <oXygen/> XML Editor http://www.oxygenxml.com On 6/18/2019 12:13 PM, Pascal Beutels wrote:
Hi,
When a conref with a long word is inserted in a table cell, the other cells in the same column are automatically resized to the same size of the cell after inserting this conref.
When we insert our custom ‘variable reference’ (behavior etc. is similar to a conref), the other table cells of the same column are not automatically resized.
We also see that the inserted content is not split (e.g. on spaces)
Is this something that needs to be configured or a API call that is required?
As a temporary workaround, can the user force a ‘re-rendering/refresh’ of a table himself (some menu in the editor)?
Kind regards,
Pascal
_______________________________________________ oXygen-sdk mailing list oXygen-sdk@oxygenxml.com https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk
------------------------------ Subject: Digest Footer _______________________________________________ oXygen-sdk mailing list oXygen-sdk@oxygenxml.com https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk ------------------------------ End of oXygen-sdk Digest, Vol 61, Issue 2 *****************************************
Hi Pascal, I tested on my side using this dummy reference resolver implementation:
new AuthorReferenceResolver() {
@Override public String getDescription() { return "abcdef"; }
@Override public SAXSource resolveReference(AuthorNode node, String systemID, AuthorAccess authorAccess, EntityResolver entityResolver) { return new SAXSource(authorAccess.getXMLUtilAccess().newNonValidatingXMLReader(), new InputSource( new StringReader("<okr xmlns='http://www.oxygenxml.com/extensions/author'>THIS IS SOME FAKE BUT VERY LARGE CONTENT1 THIS IS SOME FAKE BUT VERY LARGE CONTENT2</okr>"))); }
@Override public boolean isReferenceChanged(AuthorNode node, String attributeName) { return "testHref".equals(attributeName); }
@Override public boolean hasReferences(AuthorNode node) { return node instanceof AuthorElement && ((AuthorElement)node).getAttribute("testHref") != null; }
@Override public String getReferenceUniqueID(AuthorNode node) { return node instanceof AuthorElement ? ((AuthorElement)node).getAttribute("testHref").toString() : null; }
@Override public String getReferenceSystemID(AuthorNode node, AuthorAccess authorAccess) { return "http://fake.xml"; }
@Override public String getDisplayName(AuthorNode node) { return "someFakeRef"; } }
with this DITA topic:
<!DOCTYPE topic PUBLIC "-//OASIS//DTD DITA Topic//EN" "topic.dtd"> <topic id="care"> <title>Care and Preparation</title> <body> <p>When <table frame="all" id="table_vly_l4d_d3b"> <title>dsadas</title> <tgroup cols="2"> <colspec colname="c1" colnum="1" colwidth="1*"/> <colspec colname="c2" colnum="2" colwidth="1*"/> <thead> <row> <entry/> <entry/> </row> </thead> <tbody> <row> <entry><keyword testHref="def"></keyword></entry> <entry/> </row> <row> <entry/> <entry><keyword testHref="def"></keyword></entry> </row> </tbody> </tgroup> </table></p> </body> </topic>

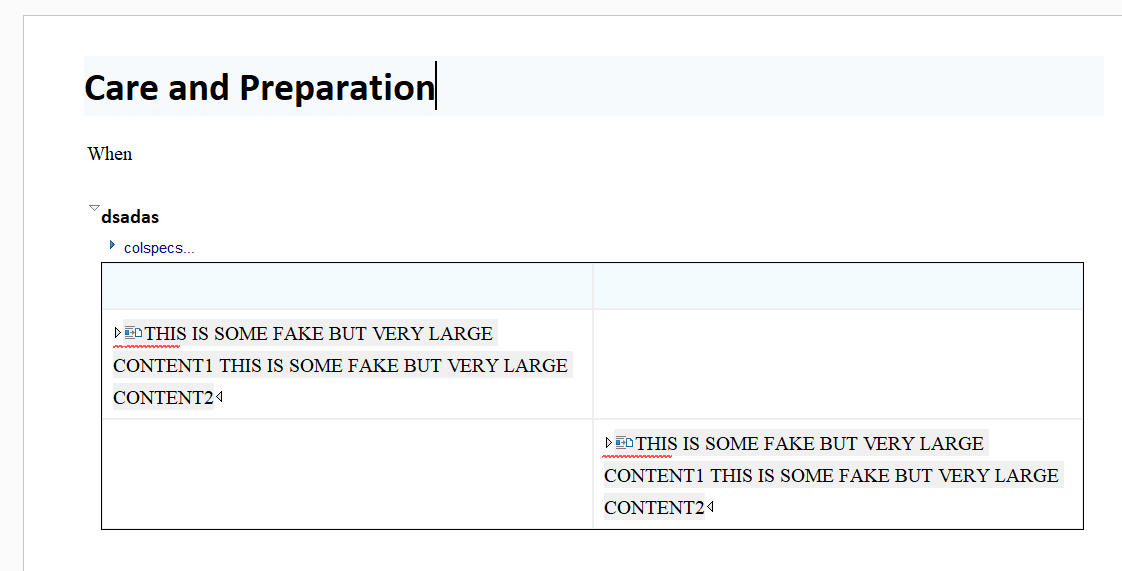

and I'm attaching a screenshot with how the rendered content looks like in the Author visual editing mode on my side. So how should I change the sample references resolver on my side to reproduce the problem? Regards, Radu Radu Coravu <oXygen/> XML Editor http://www.oxygenxml.com On 6/19/2019 10:00 AM, Pascal Beutels wrote:
Hi,
We did implement "ro.sync.ecss.extensions.api.AuthorReferenceResolver".
We did not do any custom css rule matching, nor did we use the StyleFilter API for this.
What would be the best option to implement this behavior, css or the StyleFilter? The behavior would not differ much from the behavior for conrefs.
Kind regards,
Pascal
-----Original Message----- From: oXygen-sdk <oxygen-sdk-bounces@oxygenxml.com> On Behalf Of oxygen-sdk-request@oxygenxml.com Sent: Tuesday, June 18, 2019 7:00 PM To: oxygen-sdk@oxygenxml.com Subject: oXygen-sdk Digest, Vol 61, Issue 2
Send oXygen-sdk mailing list submissions to oxygen-sdk@oxygenxml.com
To subscribe or unsubscribe via the World Wide Web, visit https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk or, via email, send a message with subject or body 'help' to oxygen-sdk-request@oxygenxml.com
You can reach the person managing the list at oxygen-sdk-owner@oxygenxml.com
When replying, please edit your Subject line so it is more specific than "Re: Contents of oXygen-sdk digest..."
Today's Topics:
1. Re: Auto-resizing a DITA table after inserting content (Oxygen XML Editor Support (Radu Coravu))
----------------------------------------------------------------------
Message: 1 Date: Tue, 18 Jun 2019 12:49:12 +0300 From: "Oxygen XML Editor Support (Radu Coravu)" <support@oxygenxml.com> To: oxygen-sdk@oxygenxml.com Subject: Re: [oXygen-sdk] Auto-resizing a DITA table after inserting content Message-ID: <b73d25a6-5dae-2ae3-f259-65dedc2eeeff@oxygenxml.com> Content-Type: text/plain; charset=utf-8; format=flowed
Hi Pascal,
You can refresh the entire edited content in the Author visual editing mode using the F5 keyboard shortcut but probably the table will look the same no matter how many times you refresh it.
So you added your own "ro.sync.ecss.extensions.api.AuthorReferenceResolver" implementation, right? Also did you add some kind of custom CSS rule matching such reused elements? Or use our StylesFilter API? Somehow I need to reproduce this on my side in order to add logging on my side. So if possible please send to "support@oxygenxml.com" a sample file + the custom framework extension containing your Java extensions.
Regards, Radu
Radu Coravu <oXygen/> XML Editor http://www.oxygenxml.com
On 6/18/2019 12:13 PM, Pascal Beutels wrote:
Hi,
When a conref with a long word is inserted in a table cell, the other cells in the same column are automatically resized to the same size of the cell after inserting this conref.
When we insert our custom ‘variable reference’ (behavior etc. is similar to a conref), the other table cells of the same column are not automatically resized.
We also see that the inserted content is not split (e.g. on spaces)
Is this something that needs to be configured or a API call that is required?
As a temporary workaround, can the user force a ‘re-rendering/refresh’ of a table himself (some menu in the editor)?
Kind regards,
Pascal
_______________________________________________ oXygen-sdk mailing list oXygen-sdk@oxygenxml.com https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk
------------------------------
Subject: Digest Footer
_______________________________________________ oXygen-sdk mailing list oXygen-sdk@oxygenxml.com https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk
------------------------------
End of oXygen-sdk Digest, Vol 61, Issue 2 ***************************************** _______________________________________________ oXygen-sdk mailing list oXygen-sdk@oxygenxml.com https://www.oxygenxml.com/mailman/listinfo/oxygen-sdk
